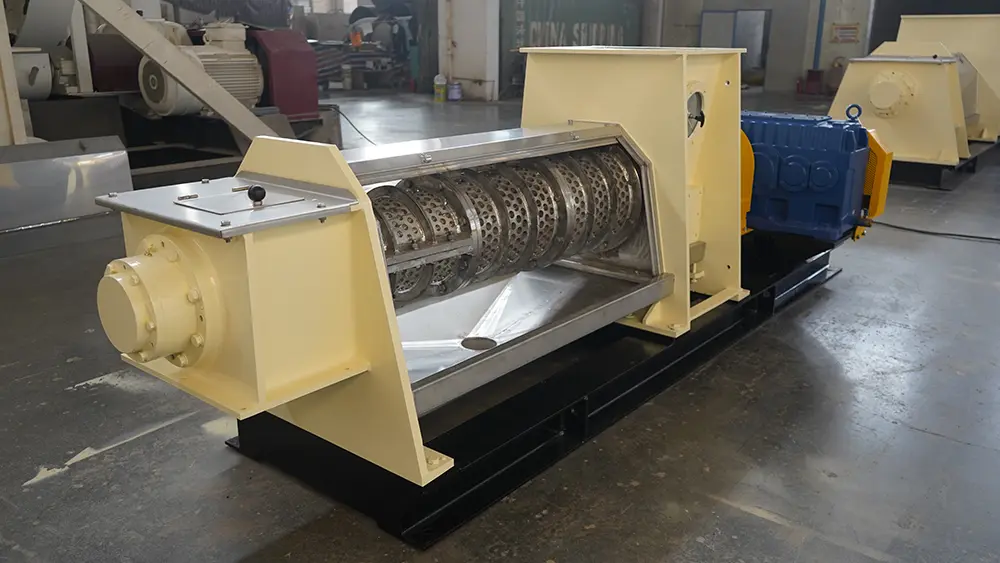

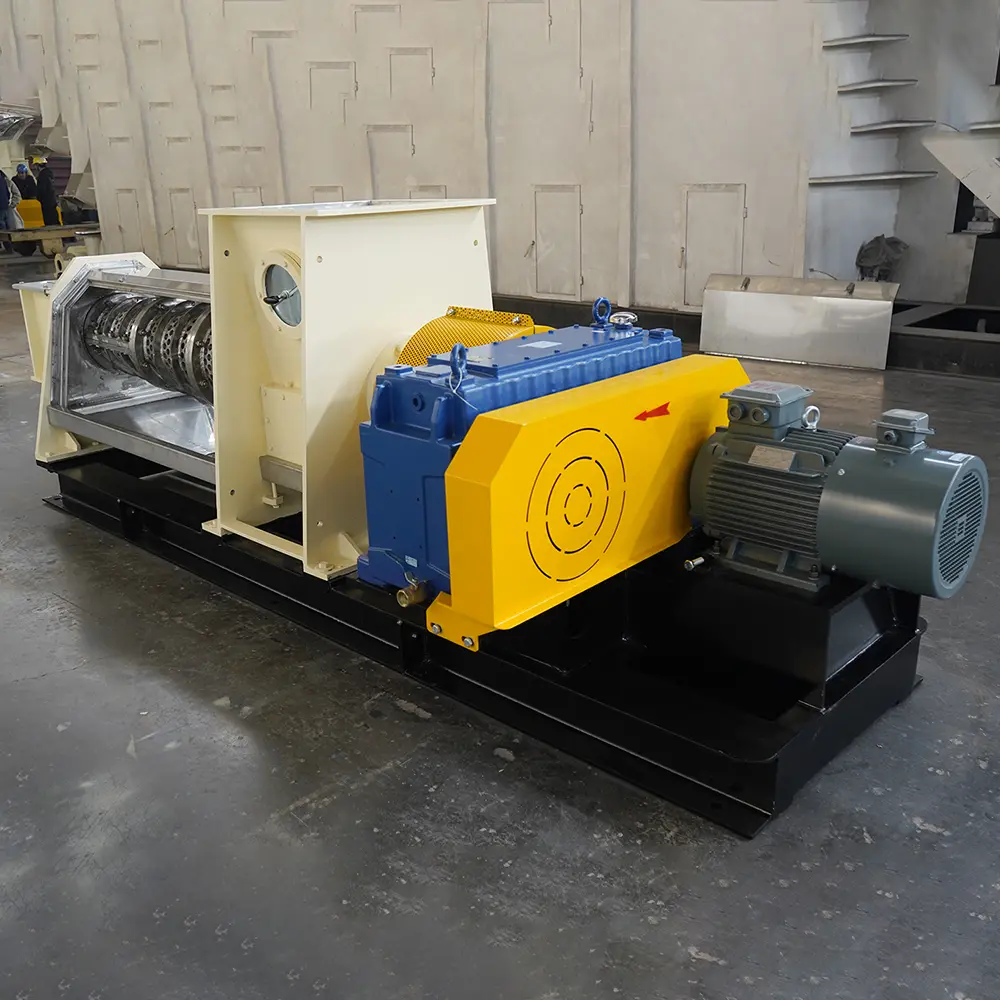

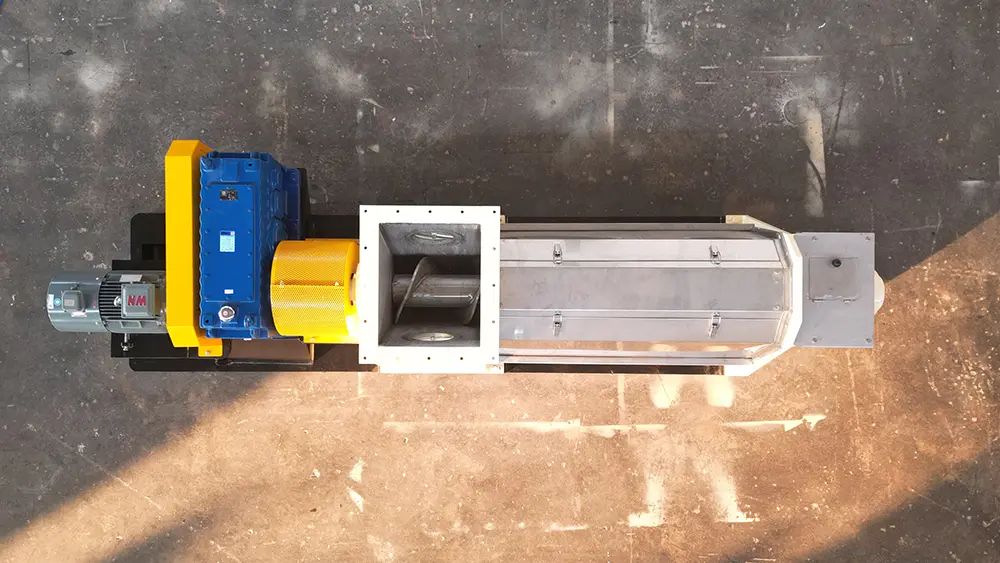

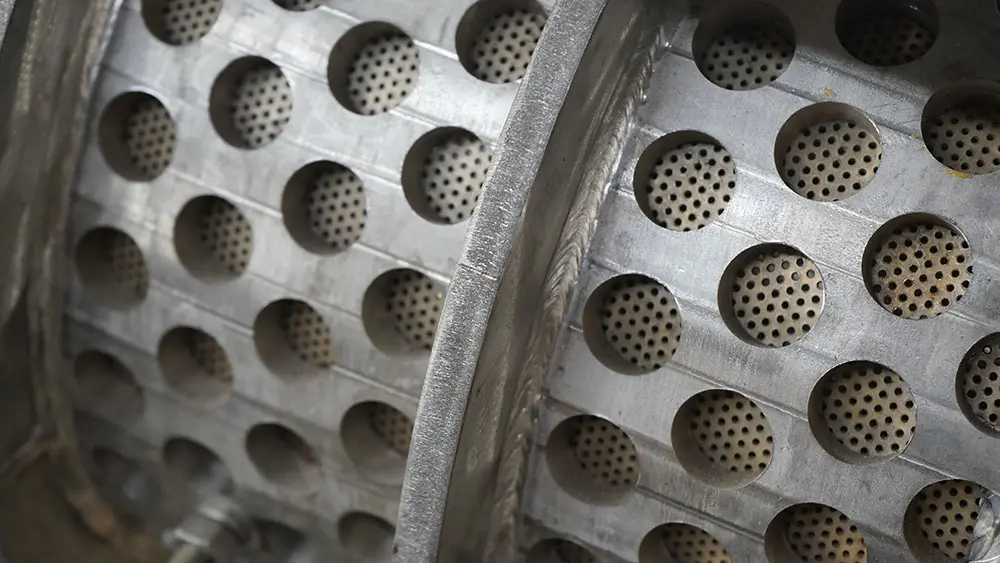

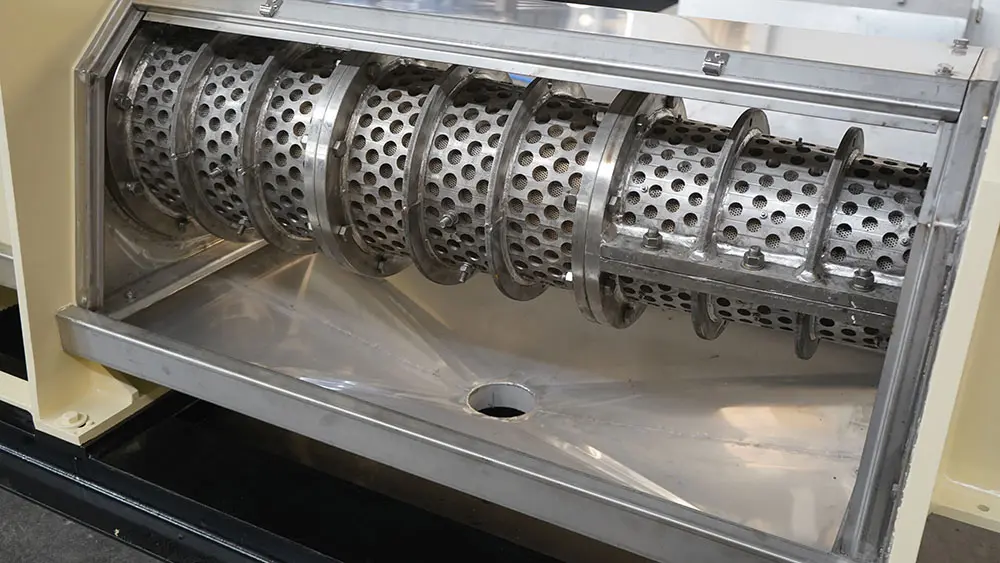

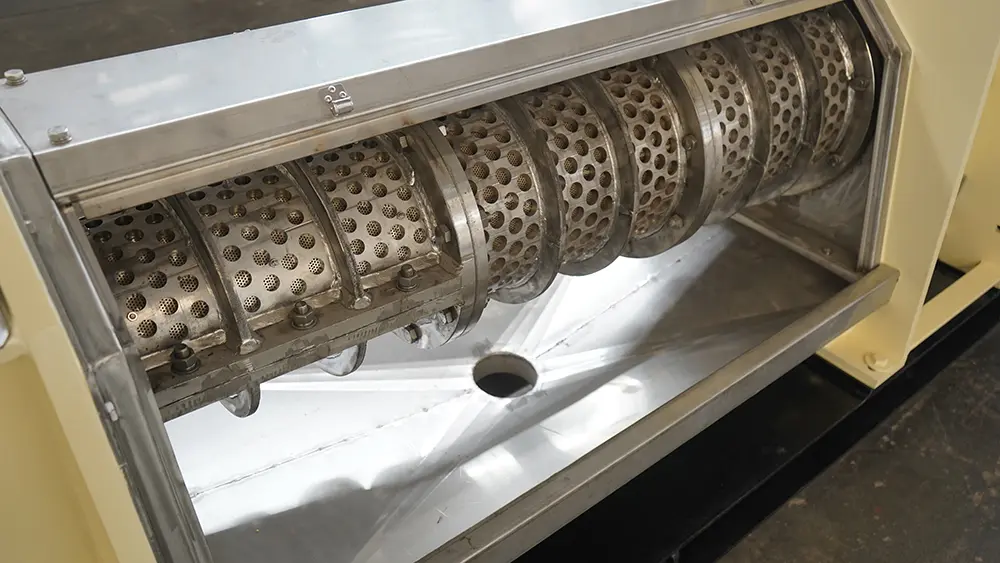

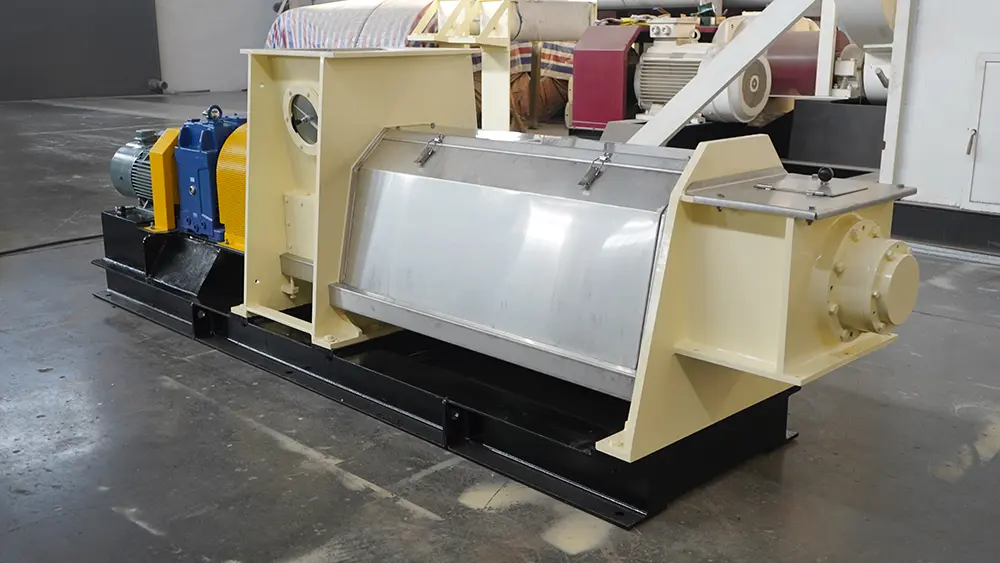

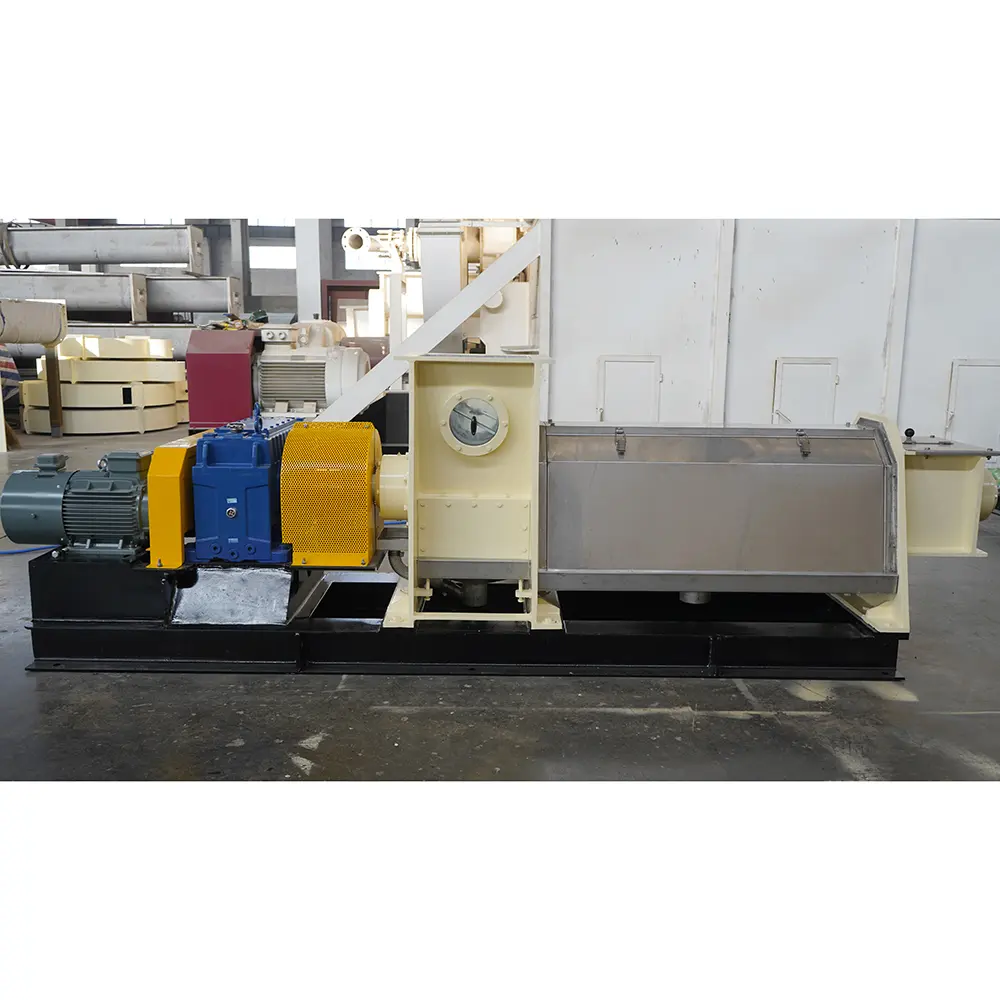

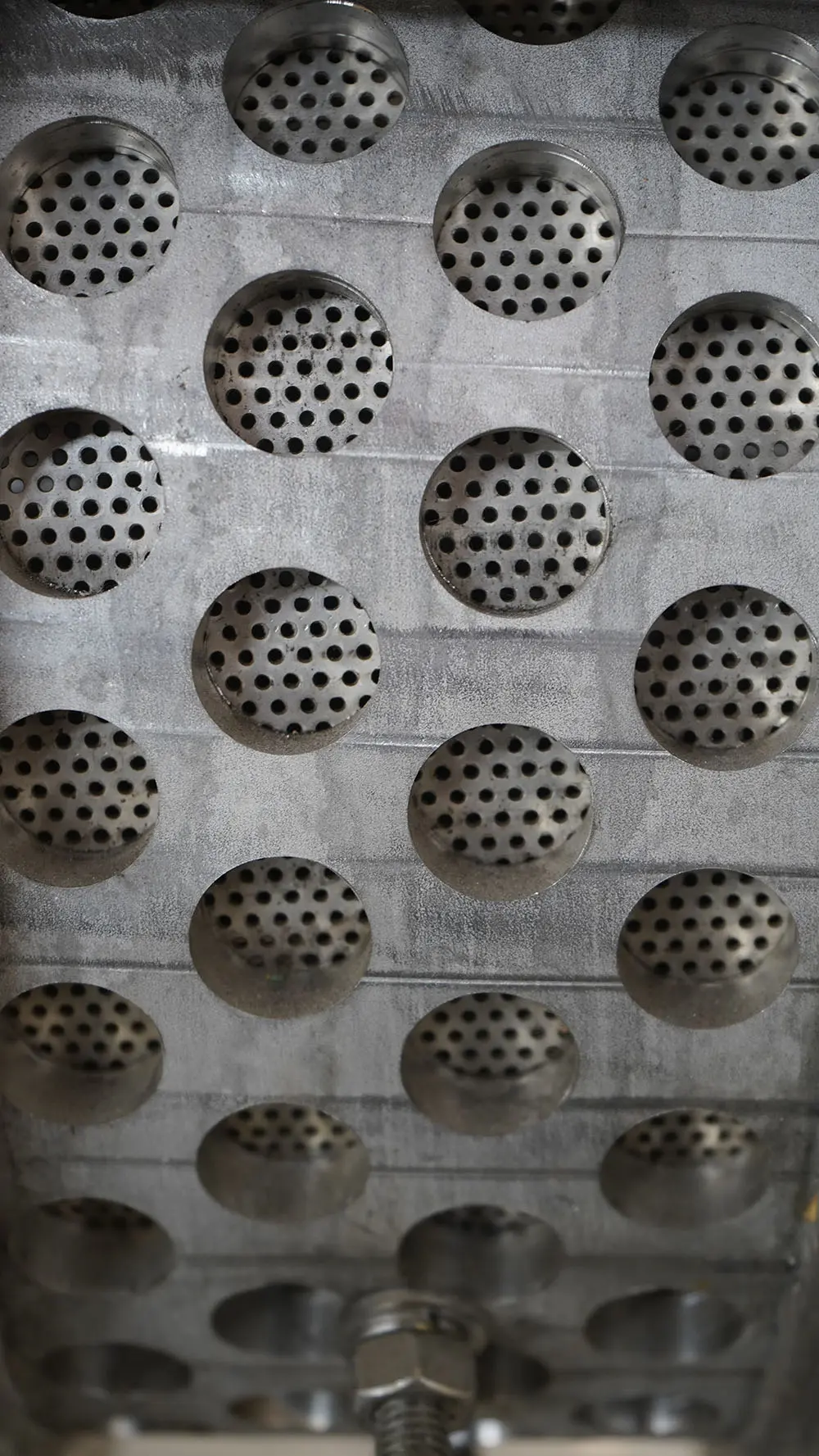

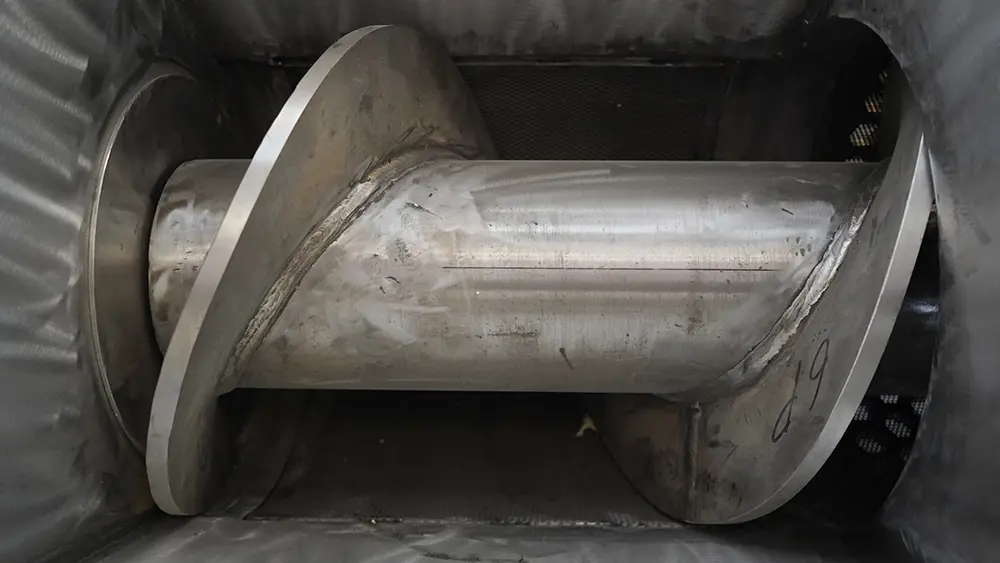

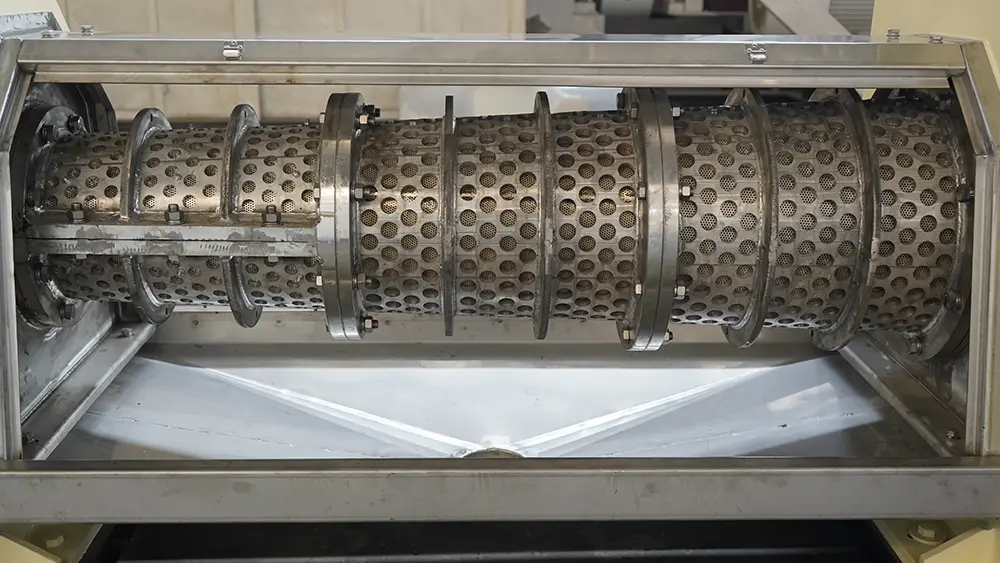

The single screw presses are applied to dewater media containing solids. The product is fed to the pressing section through a feed hopper. In this section, the pressing screw compresses, tumbles and works the product so that water escapes through the screen cages. At the end of the pressing section, the material falls through the discharge hopper thus leaving the press.
A single screw press has widely been used for chemical, food and grain deep processing industries. A press may mechanically pre-dewater many kinds of water-material, such as corn fibre, corn germ, etc. The result is that a press supplies energy conservation for final drying, largely decreasing total energy consumption of drying.
| Type | Rotate Speed | Power (kW) | Maximal Feeding (kg/h) | Dimension (L×W×H) mm | Weight (T) |
|---|---|---|---|---|---|
| NSC250 | 12–16 | 4 | 2000 | 2800×700×1100 | 1.8 |
| NSC300 | 12–16 | 5.5 | 3500 | 3100×820×1200 | 2.2 |
| NSC350 | 8–14 | 11 | 5000 | 3600×900×1250 | 2.5 |
| NSC500 | 8–14 | 22–30 | 13000 | 5380×1350×1570 | 5 |
| NSC650 | 8–12 | 45 | 20000 | 6660×1580×1750 | 8 |
